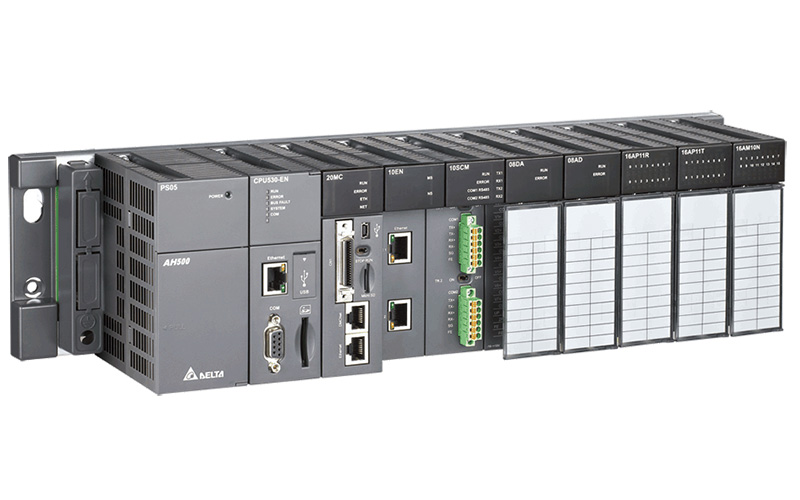

AH Series Standard CPU

Category:

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1506246561867-171fa8b9-2d9f”][vc_single_image image=”2088″ img_size=”full”][vc_column_text]Modularized Hardware Structure, Highly Integrated Software Highly integrated software ISPSoft: Graphical Interface with 5 programming languages Enhanced flexibility: Max. 100m between 2 local extension racks Improved maintainability: Hot-swapping function keeps the system running[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1506246562572-a2772493-cf26″][vc_column_text]Large Scale Industrial Machines The AH500 supports excellent motion control functions including 3-axis linear interpolation, 2-axis arc […]

Compare

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1506246561867-171fa8b9-2d9f”][vc_single_image image=”2088″ img_size=”full”][vc_column_text]Modularized Hardware Structure, Highly Integrated Software

Highly integrated software ISPSoft: Graphical Interface with 5 programming languages

Enhanced flexibility: Max. 100m between 2 local extension racks

Improved maintainability: Hot-swapping function keeps the system running[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1506246562572-a2772493-cf26″][vc_column_text]Large Scale Industrial Machines

The AH500 supports excellent motion control functions including 3-axis linear interpolation, 2-axis arc interpolation, and 3-axis helical interpolation. In addition, the AH500 is capable of controlling up to 12 axes or 4 groups of 3-axis interpolation synchronously at 1ms through Delta’s high speed DMCNET motion control network. The AH500 satisfies requirements for complex processing or precise motion control and is effective for applications such as building material processors, warp knitting machines and food packaging machines.
System Applications

The AH500 is a modular system controller designed for almost all types of high-level automation tasks. Its abundant selection of I/O modules and the flexible system structure provide the best solutions for all kinds of system integration requirements. Through remote I/O expandability, you can build up the AH500 main station as a central control system and allocate the remote I/O systems on different floors for HVAC applications, or in different processing stations for the paper-making industry. The AH500 not only fulfills the application requirements for industrial machines or devices, but it also provides total solutions for automation systems.

specs

Utilizes 32-bit processor
Excellent program execution speed:LD instruction execution speed 0.02µs
Max. I/O points:
– DIO: Max. 4,352 points
– AIO: Max. 544 channels
– RIO>100,000 points
Program capacity:Max 384k steps (1.5MB)
Data register (D+L) 256k words
CPU built-in with fully isolated RS-232/422/485?Mini USB?Ethernet?SDHC card slot
Abundant selection of DIO modules, AIO modules, temperature control modules, network modules, pulse-train modules and DMCNET / EtherCAT motion control modules[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_single_image image=”2086″ img_size=”full”][vc_single_image image=”2087″ img_size=”full”][vc_empty_space height=”30px”][/vc_column][/vc_row]
