[vc_row][vc_column][vc_column_text]The Delta Compact Modular Mid-range PLC AS Series is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta’s self-developed 32-bit SoC CPUs for enhanced execution speed (40 k steps/ms) and supports up to 32 extension modules or up to 1,024 inputs/outputs. The AS series provides accurate positioning control for up to 8 axes via CANopen motion network and max. 6 axes via pulse control (200 kHz). It is widely used in diverse automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines.[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1506247605477-17fe100c-e177″][vc_column_text]New 32-bit SoC (System on Chip) CPU to enhance execution speed(40 k steps / ms)
Positioning control function for up to 8-axis motion control via CANopen / 6-axis 200 kHz pulse control
Robust non-backplane design and patented DIN rail clips for vertical module installation and replacement
ISPSoft editing software for programming, hardware configuration, network communication, system diagnostics and positioning planning[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1506247606064-bc93be9d-d94c”][vc_column_text]Automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]New 32-bit SoC (System on Chip) CPU
Max. I/O: 1,024
Program capacity: 128k steps
Data registers: 60k words
Extension modules: max. 32 (analog modules: max.16 / communication modules: max. 4)
Execution speed: up to 40 k steps / ms
– Basic instruction (LD): 25 ns
– Application instruction (MOV): 0.15 µs
Abundant selection of DIO modules, AIO modules, temperature modules, load cell module and function cards.[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]

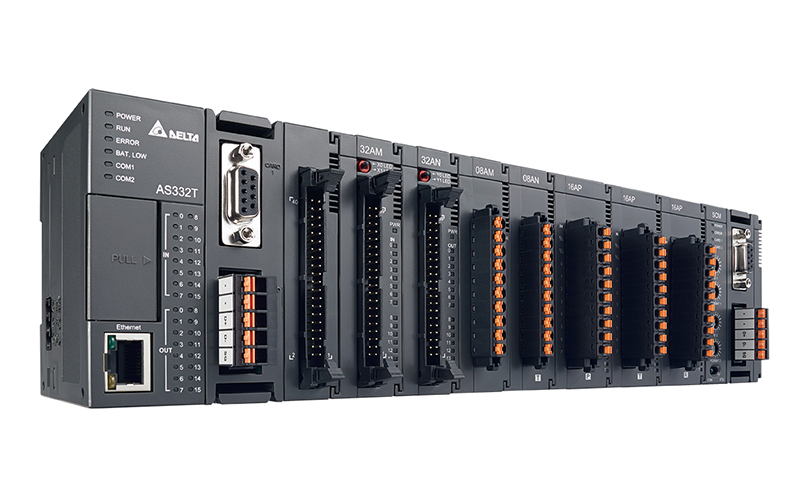

AS Series Standard CPU
