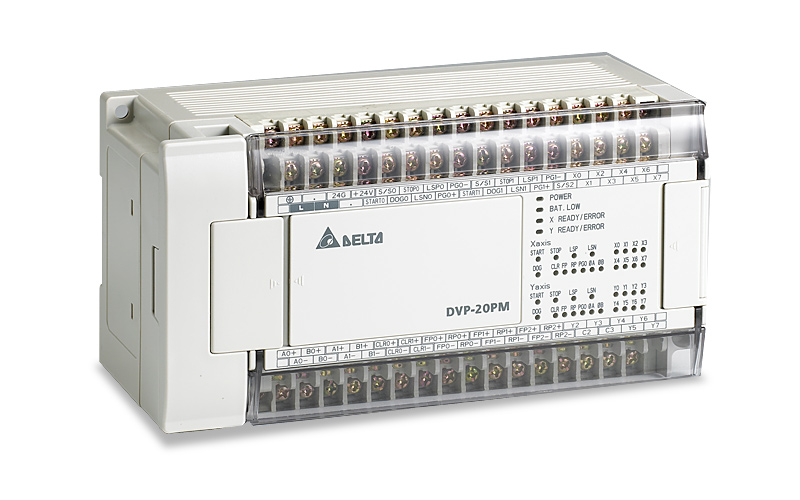

DVP-20PM

Category:

The advanced PM series motion control MPU can become the motion extension module of another PM series MPU, very flexible in all kinds of applications.

Compare

[vc_row][vc_column][vc_column_text]The advanced PM series motion control MPU can become the motion extension module of another PM series MPU, very flexible in all kinds of applications.[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Applications” tab_id=”1506252127084-039b5f20-d1c2″][vc_column_text]Used for 2-axis servo positioning control, material cutting machine (high-speed servo control), crane operations, material clipper controlled by the servo.[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]MPU points: 16
Max. I/O points: 512
Program capacity: 64K Steps
Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.
Data register: 10,000 words (latched)
500KHz high-speed pulse output:
Built-in 2 groups of A/B phase differential signal ouput
X-axis pulse output: (FP0+, FP0-), (RP0+, RP0-)
Y-axis pulse output: (FP1+, FP1-), (RP1+, RP1-)
Supports Manual Pulse Generator (MPG) and multi-point external signal inputs[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
