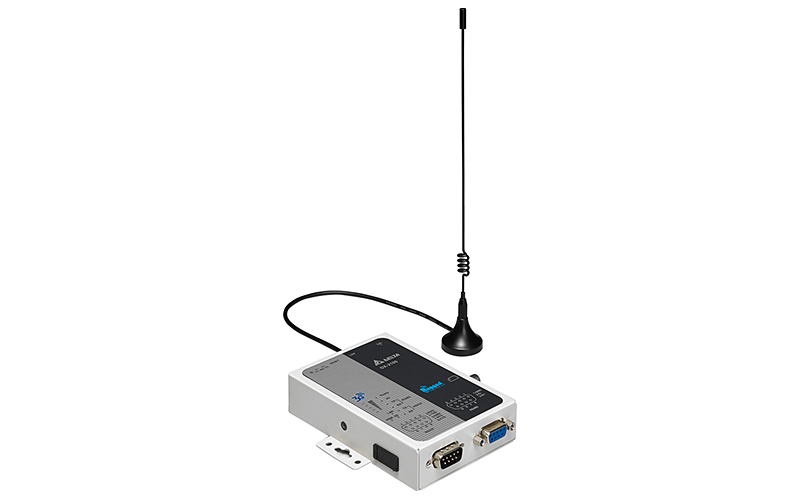

Data acquisition equipment connected to cloud servers.
Supports a two-way data collection channel between the device and the cloud
Sets up a secure tunnel between the user and the remote device via the cloud server, without the need of additional VPN servers
Supports MODBUS TCP and MODBUS RTU/ASCII protocols
Using UMTS/HSPA+ 3G technology, supports a wide range of bands (800/850, 900, AWS1700, 1900, 2100 MHz), downward compatible with GSM / GPRS / EDGE 2G network
HSPA+ data transmission rate up to 21.6 Mbps (downlink) / 5.76Mbps (uplink)
Automatic APN parameter matching and connection redial
Various peripheral interfaces include RS-485, RS-232 and LAN ports
Built-in RTC and supports NTP time synchronization over a network
Firewall functions: Stateful Packet Inspection (SPI), Prevent Denial of Service (DoS) attacks, NAT, port triggering, port mapping, IP address filter, MAC address filter, URL filter
Supports TCP/IP, UDP, ICMP, DHCP, HTTP, DNS and SSH protocols
Scheduled jobs are available
Device configurations can be exported and imported.
Network data flow statistics
Networking failure diagnostics
Device and PLC interlocking
Custom alarm conditions with email alerts
Supports Android and iOS devices on-line monitoring
TECHNOLOGY
Standard Compliance
GSM/GPRS/EDGE/UMTS/HSPA+
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T(X)
INTERFACE
3G
GSM/GPRS/EDGE/UMTS/HSPA+
Antennas
1 2.5dBi omni-directional, SMA(male) connector, 3 meters cable with magnetic stand
Fast Ethernet
RJ45 Ports: 1 10/100Base-T(X), auto MDI/MDI-X, auto negotiation
Serial Communication
Serial Ports: 1 RS-232(DB9 male), 1 RS-485( DB9 female), 15KV isolation protection
Baud Rate: 2400bps to 115200bps
Data Bits: 7, 8
Parity: None, Even, Odd
Stop Bits: 1, 2
Flow Control: RTS/CTS(RS-232 only), XON/XOFF
RS-232: TxD, RxD, RTS, CTS, GND
RS-485: D+, D-, GND
LEDs
Device: PWR, SD, Ready, 3G, Signal Strength
RJ45 Ports: LAN
Serial Ports: RS-232 RX, RS-232 TX, RS-485 RX, RS-485 TX
Reset Button
1set
3G RF
Frequency Band
UMTS/HSPA+: 800 / 850, 900, AWS1700, 1900, 2100 MHz
UMTS/HSPA+(CN model): 900, 2100 MHz
GSM/GPRS/EDGE: 850 / 900 / 1800 / 1900 MHz
MANAGEMENT
Cloud Service
DIACloud
Software
SSH, DNS, HTTP, TFTP, DHCP Server/Client, Telnet, Syslog, MODBUS TCP, NTP, MODBUS RTU/ASCII
Security
MAC/IP/URL filtering, SSH, SPI, Prevent denial of service (DoS) attacks, Port triggering, Port mapping
Virtual COM Drivers
Windows XP, Windows Vista (32/64 bits), Windows 7 (32/64 bits)
Configuration
Web Browser, DIACom, Android APP, iOS APP
POWER REQUIREMENTS
Input Voltage: 12 to 48VDC, 3 pin terminal block input
Input Current : 1A Max.
Overload Current Protection: Present, Max. Input current 1.5A
Reverse Polarity Protection: Not Present
PHYSICAL
Housing: IP30 metal case
Dimensions: 111 mm(H) x 77 mm(W) x 26 mm (D)
Weight: 196g
Installation: Wall mounting
ENVIRONMENTAL LIMITS
Operating Temperature : -20? to 70?(-4? to 158?)
Storage Temperature: -40? to 85?(-40? to 185?)
Ambient Relative Humidity: 5% to 95%(non-condensing)
APPROVALS
Safety: UL 60950-1, EN 60950-1(DX-2100RW-WW certificated)
EMI: FCC 47 CFR Part 15 Subpart B Class A, EN 55022, EN 301 489-1/7/24 (DX-2100RW-WW certified)
EMS( EN 301 489-1/7/24, EN 55024): IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 (DX-2100RW-WW certified)
RF: EN 301 511, EN301 908-1; FCC Part 22H, 24E, 27(DX-2100RW-WW certificated)
