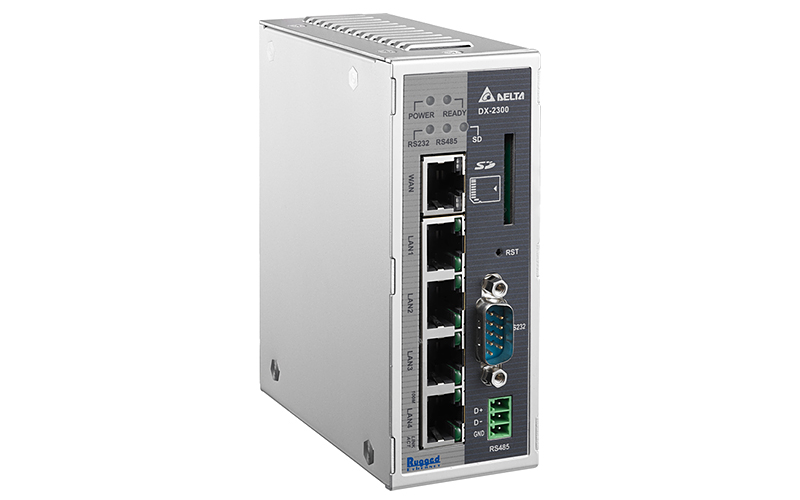

Data acquisition equipment connected to cloud servers.
Supports a two-way data collection channel between the device and the cloud
Sets up a secure tunnel between the user and the remote device via the cloud server, without the need of additional VPN servers
Supports MODBUS TCP and MODBUS RTU/ASCII protocols
Flexible connection method over WAN ports, e.g. static IP, DHCP client and more
Various peripheral interfaces include RS-485, RS-232 and 4 LAN ports
Built-in RTC and supports NTP time synchronization over a network
Firewall functions: Stateful Packet Inspection (SPI), Prevent Denial of Service (DoS) attacks, NAT, port triggering, port mapping, IP address filter, MAC address filter, URL filter
Supports TCP/IP, UDP, ICMP, DHCP, HTTP, DNS and SSH protocols
Scheduled jobs are available
Device configurations can be exported and imported.
Network data flow statistics
Networking failure diagnostics
Device and PLC interlocking
Custom alarm conditions with email alerts
Supports Android and iOS devices on-line monitoring
TECHNOLOGY
Standard Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T(X)
INTERFACE
Fast Ethernet
RJ45 Ports:
WAN: 1 10/100Base-T(X), auto MDI/MDI-X, auto negotiation
LAN: 4 10/100Base-T(X), auto MDI/MDI-X, auto negotiation
Serial Communication
Serial Ports : 1 RS-232(DB9 male), 1 RS-485( Terminal block), 15KV isolation protection
Baud Rate: 2400bps to 115200bps
Data Bits: 7, 8
Parity: None, Even, Odd
Stop Bits: 1, 2
Flow Control: RTS/CTS(RS-232 only), XON/XOFF
RS-232: TxD, RxD, RTS, CTS, GND
RS-485: D+, D-, GND
LEDs
Device: PWR, SD, Ready
RJ45 Ports: 100M, LINK/ACT
Serial Ports: RS-232, RS-485
Reset Button
1set
MANAGEMENT
Cloud Service
DIACloud
Software
SSH, DNS, HTTP, TFTP, DHCP Server/Client, Telnet, Syslog, MODBUS TCP, NTP, MODBUS RTU/ASCII
Security
MAC/IP/URL filtering, SSH, SPI, Prevent denial of service (DoS) attacks, Port triggering, Port mapping
Virtual COM Drivers
Windows XP, Windows Vista (32/64 bits), Windows 7 (32/64 bits)
Configuration
Web Browser, DIACom, Android APP, iOS APP
POWER REQUIREMENTS
Input Voltage: 9to 40VDC, 2 pin terminal block input
Input Current: 0.53A Max.
Overload Current Protection: Present, Max. Input current 1.5A
Reverse Polarity Protection: Not Present
PHYSICAL
Housing: IP30 metal case
Dimensions: 145.3 mm(H) x 45 mm(W) x 112.3 mm (D)
Weight: 308g
Installation: Industrial DIN-Rail and Wall mounting
ENVIRONMENTAL LIMITS
Operating Temperature : -20℃ to 70℃(-4℉ to 158℉)
Storage Temperature: -40℃ to 85℃(-40℉ to 185℉)
Ambient Relative Humidity: 5% to 95%(non-condensing)
APPROVALS
Safety: UL 60950-1, EN 60950-1
EMI: FCC 47 CFR Part 15 Subpart B Class A, EN 55022
EMS( EN 55024): IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
