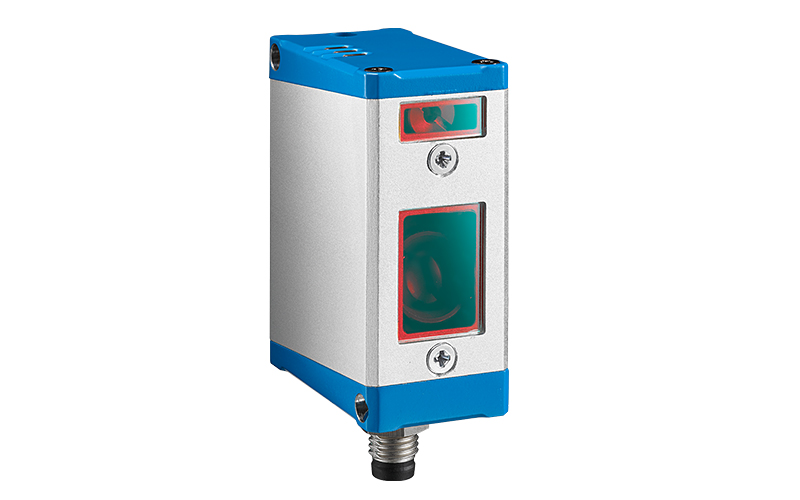

Laser Displacement


Delta’s Laser Displacement precisely measures the changes in distance of target objects, with a measuring range from 30mm to 210 mm. To meet the demand of measurement accuracy, we provide three types of models that can be used in controlling, sorting, and inspection tasks in quality control, workflows and processes. Applications can be used on dimension, thickness, position, and shape measurements.


Aluminum case, strong structure
Slim and small, easy to assemble
High precision, average time setting
IP67 and CE certification


Food and beverages, packaging, pharmacy, electronic component equipment, textiles, rubber and plastics, warehouses, machine tool industries


Detection range:
– LD-040: 30 ~ 50mm
– LD-080: 55 ~ 105mm
– LD-150: 90 ~ 210mm
Communication: Digital IO / MODBUS RS 485
Voltage range: 12 ~ 24 VDC ± 10%
– LD-040: 2 μm
– LD-080: 5 μm
– LD-150: 15 μm
Sampling rate: 1 ms
Linearity: ± 0.1%
Dimensions: 55 x 42 x 24 mm
Connection: 8 pin M8 Connector
