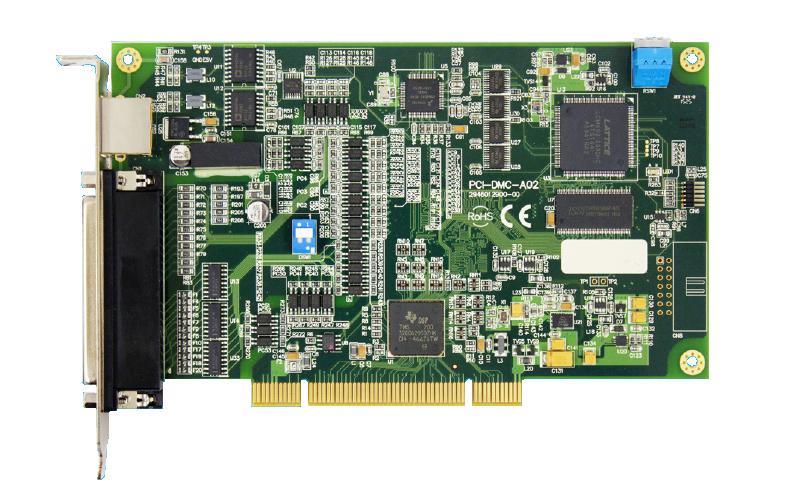

[vc_row][vc_column][vc_column_text]The PCI-DMC-A02 motion control card has built-in digital I/O interfaces which transfer up to 32 digital inputs and 24 digital outputs. No extra I/O card and connection are required. The good extension and rapid response it achieves saves cost and enhances the efficiency of the system. In addition, the PCI-DMC-A02 can connect to a manual pulse generator (MPG) and conduct system adjustment directly without writing programs in response to field needs.[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Applications” tab_id=”1505958284122-1b3f4ea7-00d1″][vc_single_image image=”1926″ img_size=”full”][/vc_tta_section][vc_tta_section title=”Features” tab_id=”1505958284713-d8c43ccd-45f0″][vc_column_text]Acts as a DMCNET master to extend connection with more servo systems and I/O modules and control the whole system more effectively
Controlling up to 12 stations that enable a 12-axis motion control
Communication can be completed by 1ms cycle time
Built-in digital I/O interfaces which transfer up to 32 digital inputs and 24 digital outputs
Supports manual pulse generator (MPG)[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_single_image image=”1927″ img_size=”full”][vc_empty_space height=”30px”][/vc_column][/vc_row]
