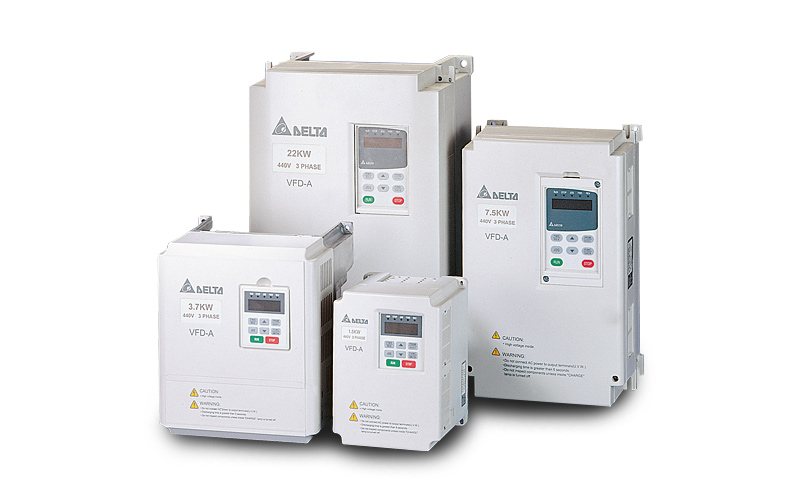

[vc_row][vc_column][vc_column_text]This series is the first generation of AC motor drive with abundant features, including multi-function I/O terminal, V/f control and auto-torque/auto-slip compensation, built-in RS-485 serial interface (MODBUS) and digital keypad that can be connected to VFD with extended wire. Now it has been updated to B and M series.[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Application” tab_id=”1505532775841-52f3e486-3dac”][vc_column_text]Air conditioner for large buildings, woodcarving machine, wastewater treatment system, washing machine, vertical stamping machines, compressor, circular loom, flat knitting machine, pasta machine, etc.[/vc_column_text][/vc_tta_section][vc_tta_section title=”Specifications” tab_id=”1505532776645-0f74ebbb-a627″][vc_column_text]Output frequency: 0.1~400Hz
1-10HP: built-in brake chopper, DC braking function
Analog frequency setting: 0-10VDC, 4-20mA
Coast to stop or ramp to stop can be set
Carrier frequency can be adjusted from 3kHz to 15kHz
8-step preset speed control, JOG operation
2 sets of accel./decel. time selections and accel./decel. S-curve settings
Built-in RS-485 serial interface (Max. baud rate: 4800)
Digital keypad can be connected to VFD with the extended wire less than 5m[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_empty_space height=”30px”][/vc_column][/vc_row]
