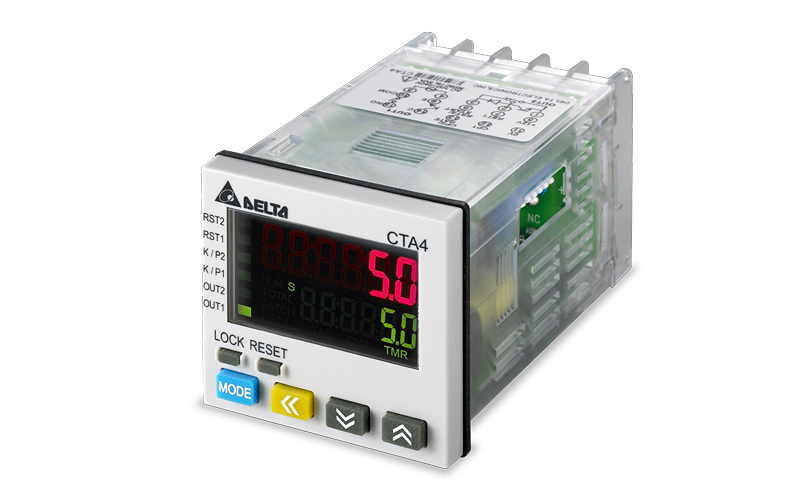

CTA Series

CTA Timer/Counter/Tachometer is able to receive external input signals and calculate the times of events, frequency and driving speed. CTA can be applied to batch counting, total counting, length measurement, position control, accurate timing, rotation speed and so on.

Compare

CTA Timer/Counter/Tachometer features easy and handy parameter settings and tuning and are certified by international standards CE and UL.

Applications

Label printers, cut-to-length machines

Specifications

Panel size: 48mm x 48mm
Power input: 100~240VAC, 50/60Hz or DC24V
Range of input voltage: 85%~110%, rated voltage or DC21.6V~26.4V
Power consumption: less than 10VA or 5W
External power supply: 12VDC ± 10%; 100mA
Display: Double-line 6-digit LCD display
NPN input: ON impedance 1K ohm max. ON residual voltage: 2V max.
PNP input: high level: 4.5~30VDC; low level: 0~2VDC
Dielectric strength: 2,000VAC; 50/60Hz for 1 minute
