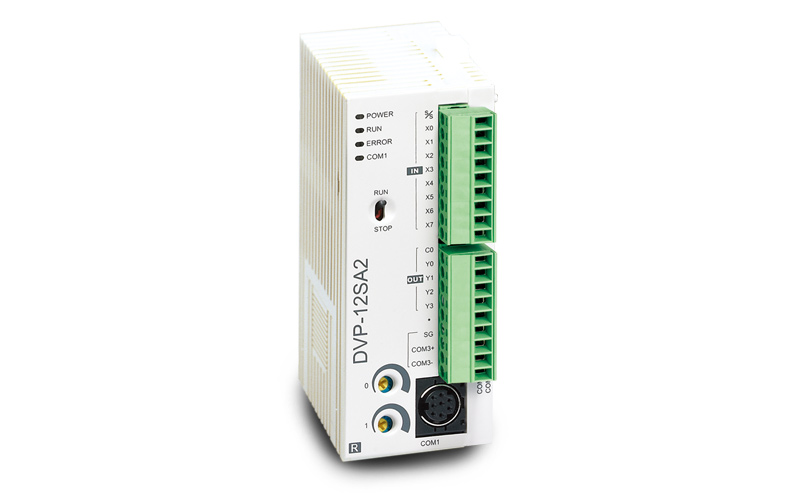

[vc_row][vc_column][vc_column_text]The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions. It is extendable with DVP-S series left-side and right-side extension modules.[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Applications” tab_id=”1506250598357-1b7f662d-26e2″][vc_column_text]Printing machine, dying machine, container filler (for prescription’s), work station monitoring in production line (PLC EASY LINK)[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_single_image image=”2129″ img_size=”full”][vc_column_text]MPU points: 12 (8DI + 4DO)
Max. I/O points: 492 (12 + 480)
Program capacity: 16k steps
COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol.
Can be master or slave.
High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.
Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions.
Built-in High-Speed Counters[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
