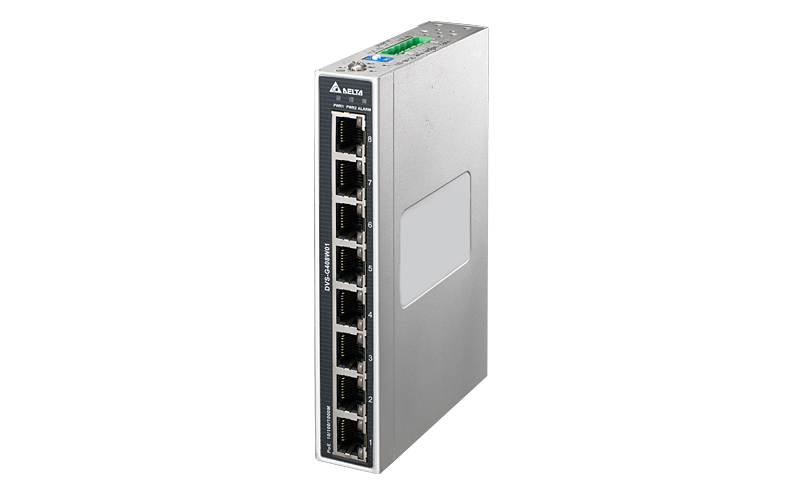

8 10/100/1000Base-T PoE(PSE) ports
Based on IEEE 802.3at standard up to 30Watts per port. Backward compatible with IEEE 802.3af
Jumbo frame size up to 9,216 Bytes
48 to 57VDC redundant terminal block power input
Auto warning by relay output for power failure
Compatible with various industrial protocols of EtherNet/IP, Profinet, CC-LINK IE and DNP 3.0



Standard Compliance
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-T(X) and 100Base-FX
IEEE 802.3ab 1000Base-T
IEEE 802.3x Flow Control
IEEE 802.3af PoE 15.4 Watts
IEEE 802.3at PoE 30 Watts
Processing Type
Store and Forward
IEEE 802.3x Flow control in full duplex, back-pressure flow control in half duplex


Gigabit Ethernet
RJ45 Ports: 8 10/100/1000Base-T, auto MDI/MDI-X, auto negotiation
PoE+ Pingout: 1&2 DC+, 3&6 DC-
DIP Switches
Power failure alarm
Alarm Contact(DO)
1 relay output
Carry current 1A@24VDC

Performance and Scalability

Switching Capacity: 16Gbps, wired-speed, non-blocking switching fabric
Forwarding Rate: 11.9Mpps
MAC Address Table: 2K
Packet Buffer Memory: 1.5M bits
Jumbo Frame: 9,216 Bytes

Power Requirements

Input Voltage: 2 sets, 48 to 57VDC redundant terminal block input
Input Current: Max. 5A (with powered device); Max. 0.16A (without powered device)
Overload Current Protection: Present, max. input current 10A
Reverse Polarity Protection: NOT Present


Housing : IP30 metal case
Dimensions : 144.3 mm(H) x 26.1 mm(W) x 94.9 mm (D)
Weight : 390g
Installation : Industrial DIN-Rail and wall mounting

Environmental Limits

Operating Temperature : -40? to 70?(-40°F to 158°F)
Storage Temperature: -40? to 85?(-40°F to 185°F)
Ambient Relative Humidity: 5% to 95%(non-condensing)


Safety: EN 60950-1
EMI: FCC 47 CFR Part 15 Subpart B Class A, EN 55022(CISPR22)
EMS: IEC 61000-4-2 level 3, IEC 61000-4-3 level 3, IEC 61000-4-5 level 3, IEC 61000-4-6 level 3
