[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505936252863-0b21ec60-c32d”][vc_column_text]2- or 4-wire compact transmitter
Non-contact level metering
Narrow 5° beam angle
Excellent signal processing via QUEST+ software
Temperature compensated
Secondary lightning protection
32 point linearisation
PP, PVDF, PTFE, stainless steel or foam faced transducers
Plug-in display module
Plastic, aluminium or stainless steel housing
HART communication
Explosion-proof models[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505936253749-cbc3f12a-10c0″][vc_column_text]For most liquids, including flammable liquids
Open channel flow metering
Wide application area from wastewater to aggressive chemicals
Level measurement in basins, wells, sumps, lift-stations
Suitable for level measurement of hydrocarbons, acids, aggressive liquids, any water based medium[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 2-wire: 12 – 36 V DC, 4-wire: 85 – 255 V AC, 20 – 28 V AC/DC
Ambient temperature: – 30 °C … + 70 °C
Process temperature: – 30 °C … + 100 °C
Pressure: (absolute): 0.05 – 0.5 MPa (0.5 – 3 bar)
Measuring range: 0.2 – 25 m
Output: 4 – 20 mA + HART®
Protection: IP67
Approvals: ATEX ex[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]

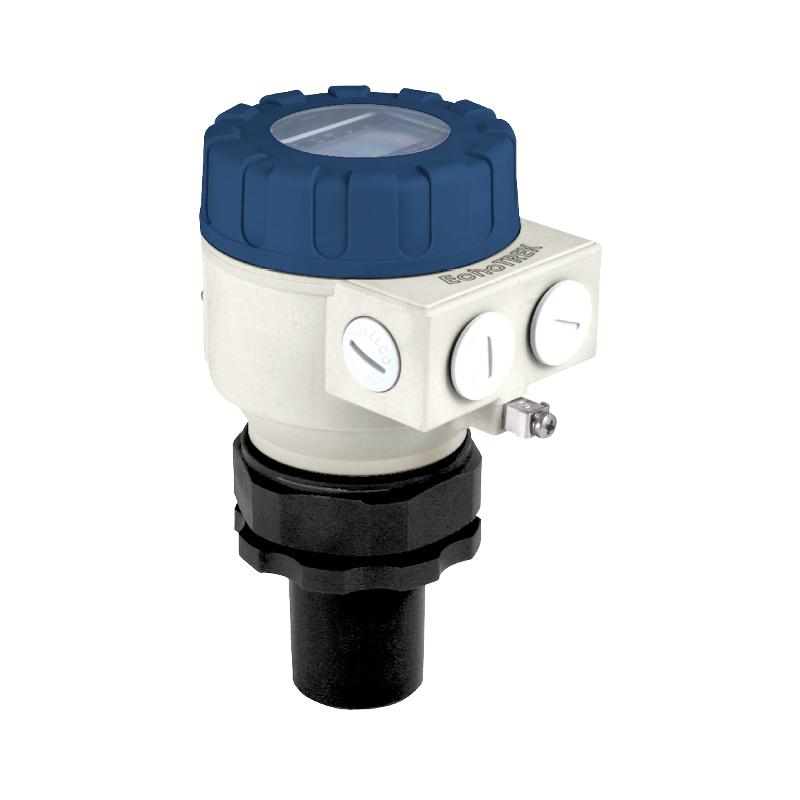

EchoTREK for liquids
