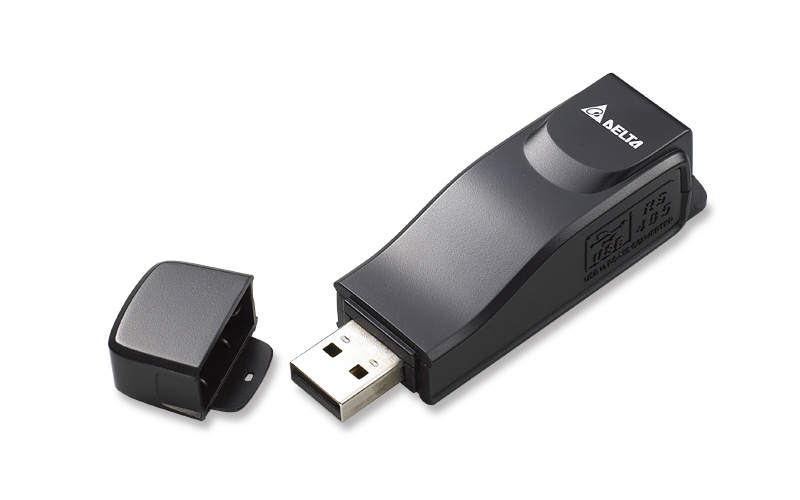

A USB/RS-485 communication converter for C2000 series AC motor drive only
Offers 9V power supply
Supports keypad (KPC-CC01) for VFD series AC motor drive in conducting parameter storage and page editing in TPEditor software
Supports baudrate 75 ~ 115,200 bps
No external power supply required
Auto-detects the direction of data flow
A USB portable device


Power supply: No external power supply required
Power consumption: 0.6 W
Insulation voltage: 1,000 VDC
Baudrate: 75, 150, 300, 600, 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bps
USB connector: A type (plug)
RS-485 terminal: RJ-45 (8-pin)
Dimensions (L×W×H): 3.15×0.89×0.83in (80mm×22.5mm×21.2mm)
