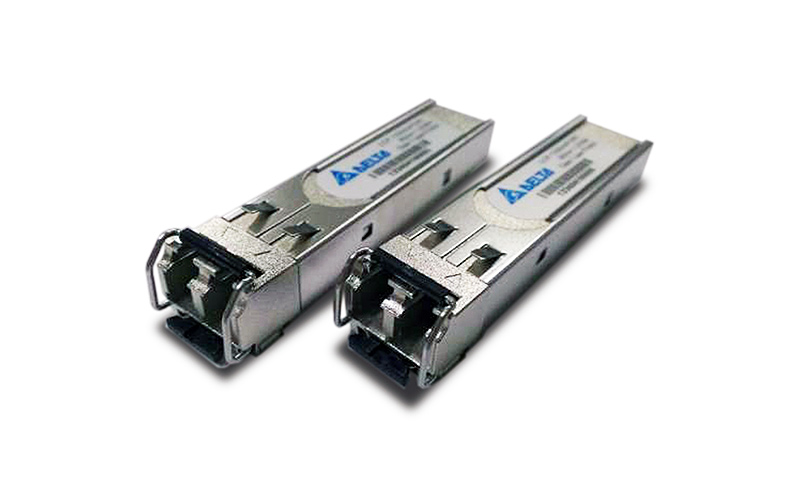

LCP-1FE

Compliant with IEEE 802.3u
Full duplex operation
Supports IEEE 802.3x flow control
DDM diagnosis function enhances transmission quality
Duplex LC connector interface
Hot-Pluggable for maximum flexibility
TTL signal detect indicator
Class 1 laser product (compliant with IEC 60825-1 and IEC 60825-2)
Metal case for better EMI immunity
Wide operating temperature

Compare

Technology

Standard Compliance: IEEE 802.3u 100Base-FX

Interface

Fast Ethernet
Port number: 1
Connectors: Duplex LC

Digital Diagnostics Monitoring Function(DDM )

Basic Information: Ethernet Compliance Code, Vendor Name, Wavelength, Distance
Enhanced Parameters: Temperature, Supply Voltage, Transmitted Bias Current, Transmitted Power, Received Power
Note1:All Enhanced Parameters listed above including alarm and warning thresholds
Note2: DDM is fully compatible with Delta DVS series Industrial Ethernet Switches

Physical

Housing: Metal case
Dimensions: 8.5mm(H) × 13.4mm(W) × 57mm(D)
Installation: Hot-swappable, Pluggable

Environmental Limits

Operating Temperature
Standard Models: -5? to 70?(41? to 158?)
Wide Temp. Models: -40? to 85?(-40? to 185?)
Storage Temperature: -40? to 85?(-40? to 185?)
Ambient Relative Humidity: 5% to 95%(non-condensing)

Approvals

Safety: UL 60950-1, EN 60950-1
Laser Eye Safety: IEC 60825-1, EN 60825
EMI: FCC 47 CFR Part 15 Subpart B Class B, EN 55022, CISPR 22
ESD: IEC 61000-4-2, MIL-STD-883E, EIA-JESD22-A115-A
