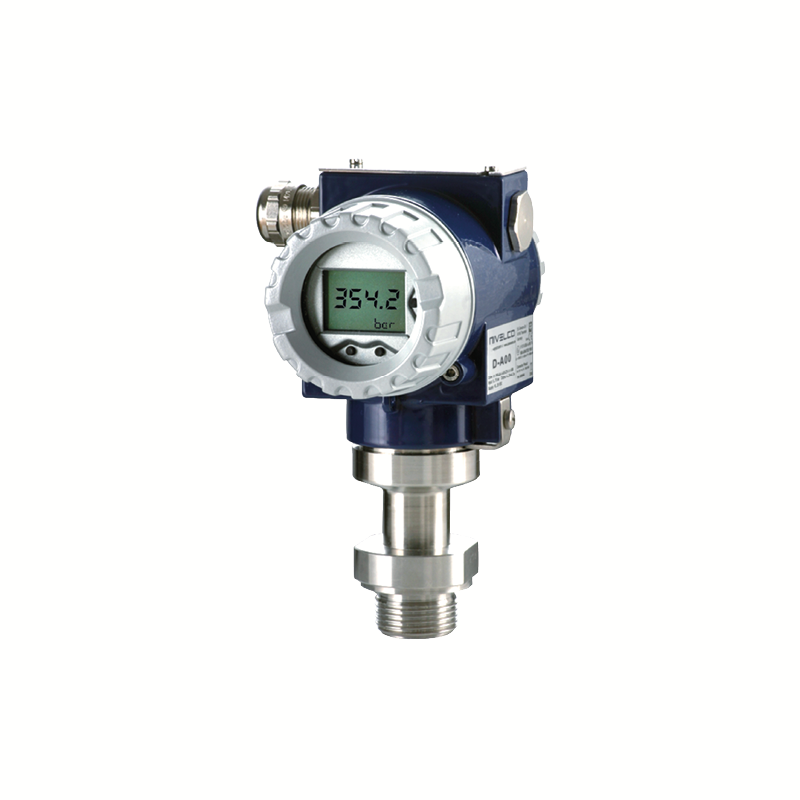

NIPRESS D

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505949628684-4851a2a1-5dfd”][vc_column_text]Ceramic or stainless steel sensor Relative or absolute measurement mode For high pressure (up to 2000 bar) For vacuum, overpressure and absolute pressure measurement Measurement range downscale HART® communication versions Two chamber aluminium die cast or stainless steel housing Ex ia or Ex d versions* SIL 2 version*[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505949629338-2fccf418-e423″][vc_column_text]Water, waste water, fuel […]

Compare

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505949628684-4851a2a1-5dfd”][vc_column_text]Ceramic or stainless steel sensor
Relative or absolute measurement mode
For high pressure (up to 2000 bar)
For vacuum, overpressure and absolute pressure measurement
Measurement range downscale
HART® communication versions
Two chamber aluminium die cast or stainless steel housing
Ex ia or Ex d versions*
SIL 2 version*[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505949629338-2fccf418-e423″][vc_column_text]Water, waste water, fuel and oil, aggressive media, gases
Plant and machine engineering, hydraulics, HVAC
Environmental engineering, medical technology, laboratory techniques
Energy industry, food and beverage industry[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Ambient temperature: – 40 °C … + 85 °C
Process temperature: – 40 °C … + 140 °C
Sensor type: ceramic or stainless stee
Pressure: (Nominal pressure gauge) 0 – 2000 bar
Output: 4 – 20 mA, 0 – 10V, HART®
Accuracy: 0,075%, 0,1%, 0,5%, 1%
Process connection: ¼”, ½”, ¾”, 1″, 1½” or flanges 2″, 3″ RF; M20 x1.5 internal thread
Protection: IP65, IP67, IP68[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
