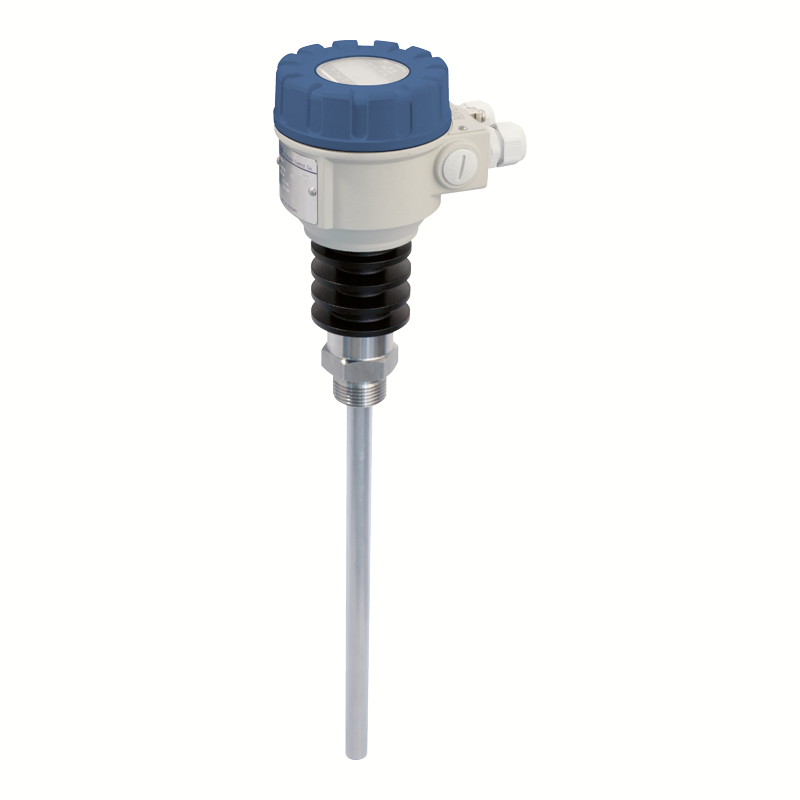

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505936813112-f9b8dbf3-8d1c”][vc_column_text]2-wire compact transmitter
Rod or cable probes up to 20 m
Plug-in display module
Fully or partly insulated probes
Secondary lightning protection
Plastic, aluminium or stainless steel housing
Distance, level and volume measurement
32 point linearisation
High sensitivity
HART communication
Explosionproof models[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505936813888-1f87b190-3d85″][vc_column_text]Level measurement of conductive and non-conductive materials
Liquids, powders, granules with er>1.5 relative dielectric constant
Chemicals with dense gas layers above the surface
Viscose or corrosive mediums
High pressure, high temperature or vacuum[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 12 – 36 V DC
Ambient temperature: – 25 °C … + 70 °C
Process temperature: – 30 °C … + 200 °C
Pressure: max. 40 bar
Output: 4 – 20 mA + HART®
Process connection: 1″, 1½”
Protection: IP67
Approvals: ATEX ex[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
