[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505937795724-cbd1ced7-18ac”][vc_column_text]Operation without power supply
Micro-switch separated from process
All wetted parts stainless steel
Side or top mounting
Fixed or adjustable switch differential
Submersible versions
Various process connections
Operational check via optional tester
Explosion-proof models
SIL1 Safety Integrity Level
Marine approvals[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505937796484-62e4b8b1-3a5a”][vc_column_text]Liquids with min. 0.7 kg/dm3 density
Fail-safe and control level switches in closed tanks
Power stations, chemical, petrochemical and pharmaceutical industry
Supplementary fail safe switch if combined with other devices
Balance tanks on ships[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Ambient temperature: – 20 °C … + 80 °C
Process temperature: – 40 °C … + 250 °C
Pressure: max. 25 bar
Output: 250 V AC, 10 A NO/NC
Process connection: flanges or 2″ thread
Protection: IP65, IP68
Approvals: ATEX ex, Germanischer Lloyd (GL), Det Norske Veritas (DNV), Bureau Veritas (BV), SIL1[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]

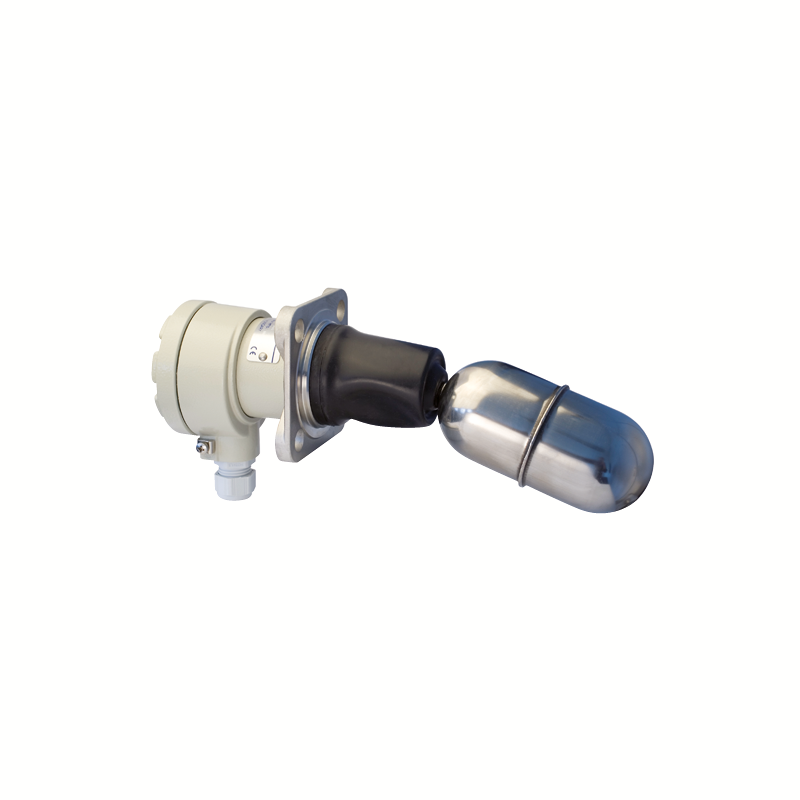

NIVOMAG
