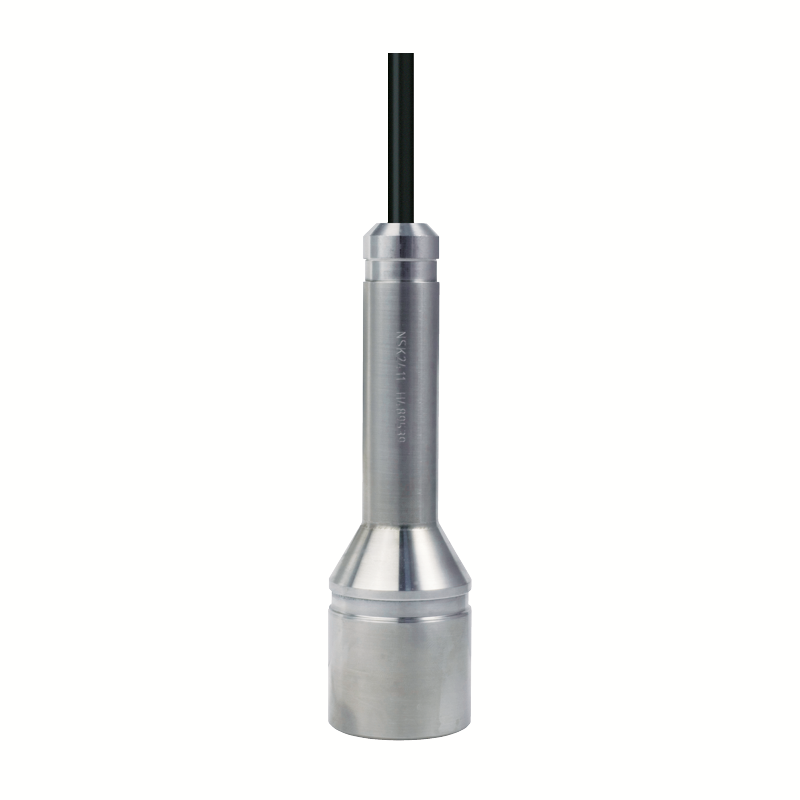

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505937260860-fa4c8aa6-499b”][vc_column_text]2- or 3-wire submersible transmitter
Plastic or stainless steel body
Capacitive ceramic, piezoresistive stainless steel and piezoresistive ceramic sensor
Up to 200 m range
Reverse polarity protection
Optional lightning protection
Linearity: ±0.25 %
HART communication
Venting tube in cable
Incorporated Pt100 temperature sensor
Explosion-proof models[/vc_column_text][/vc_tta_section][vc_tta_section title=”Application” tab_id=”1505937261960-4ca24bf7-ea59″][vc_column_text]Borehole transmitter for the water industry
Also for small diameter pipes
Clean or contaminated water, sewage
Weak acids, caustics[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 12 – 30 V DC
Process temperature: – 10 °C … + 60 °C
Measuring range: 0 – 200 m
Output: 4 – 20 mA + HART® or 0 – 10 V
Protection: IP68
Approvals: ATEX ex[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
