[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505936954408-258b3b47-cd7b”][vc_column_text]2-wire compact and mini compact transmitter
0.1 mm or 1 mm resolution
Plug-in display module
Rigid or flexible probes up to 15 m
Wetted parts: stainless steel or plastic
Distance, level and volume measurement
99 point linearisation
HART communication
Explosion-proof models
OIML R85 certification[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505936955160-0d5d746b-2537″][vc_column_text]Liquids with min. 0.4 kg/m3 density
Chemicals, solvents, hydrocarbons
Flammable liquids
Interface metering
Custody transfer (OIML R-85)[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 12 – 36 V DC
Ambient temperature: – 40 °C … + 70 °C
Process temperature: – 40 °C … + 90 °C
Pressure: max. 25 bar
Measuring range: 0 – 15 m
Output: 4 – 20 mA + HART®
Process connection: 1″, 2″ or flanges
Protection: IP67
Approvals: ATEX ex, IEC Ex, FM, CSA, OIML R-85[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]

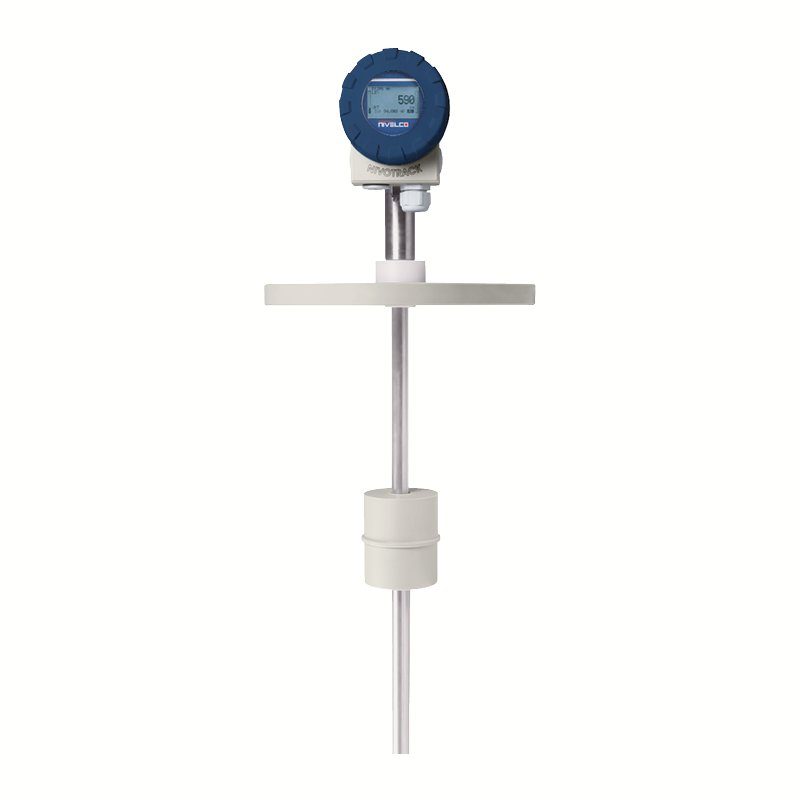

NIVOTRACK
