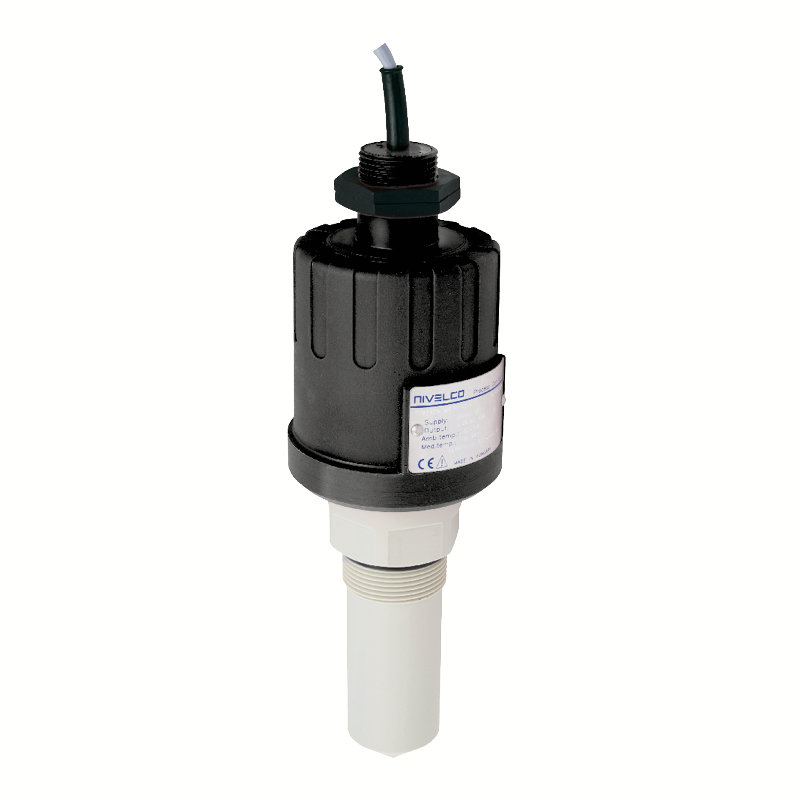

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505934895402-875f2dd6-1b34″][vc_column_text]2-wire integrated transmitter
25 GHz (K-band)
measuring signal
Non-contact level metering
Accuracy up to ±3 mm
Measuring range up to 23 m
HART communication
99-point linearisation
Plastic housing
Stainless steel horn or plastic enclosed antenna
IP68 protection
Explosion-proof models[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505934896455-24e514b6-16df”][vc_column_text]Level measurement of liquids, dollops, emulsions and other chemicals
Water, waste-water industry
Pharmaceutical industry, chemical industry
Food-industry
Energy-industry[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 20 – 36 V DC
Ambient temperature: -20 °C … +60 °C
Process temperature: -30 °C … +100 °C
Pressure: -1 bar – 3 bar
Output: 4 – 20mA, HART
Process connection: 1 ½”, 2″ or flanges or sanitary
Protection: IP68
Approvals: ATEX, IEC Ex[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
