[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505948619332-e75286ea-3428″][vc_column_text]2-wire compact temperature display, transmitter
Integral Pt100 probe
Fully programmable
Plug-in display module
Probe length up to 3 m
Aluminium or plastic housing
Heavy duty field mountable housing
HART communication
Explosion-proof models[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505948619932-c5eb4c38-af6e”][vc_column_text]Tanks, vessels, pipelines
Liquid and gaseous mediums
Where local indication is required
Transmission to long distances (4-20 mA, HART)[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 10 – 36 V DC
Ambient temperature: – 40 °C … + 70 °C
Pressure: max. 25 bar
Measuring range: – 50 °C … + 600 °C
Output: 4 – 20 mA + HART®
Process connection: M20 x 1,5; ½” ; flanges
Protection: IP65
Approvals: ATEX ex[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]

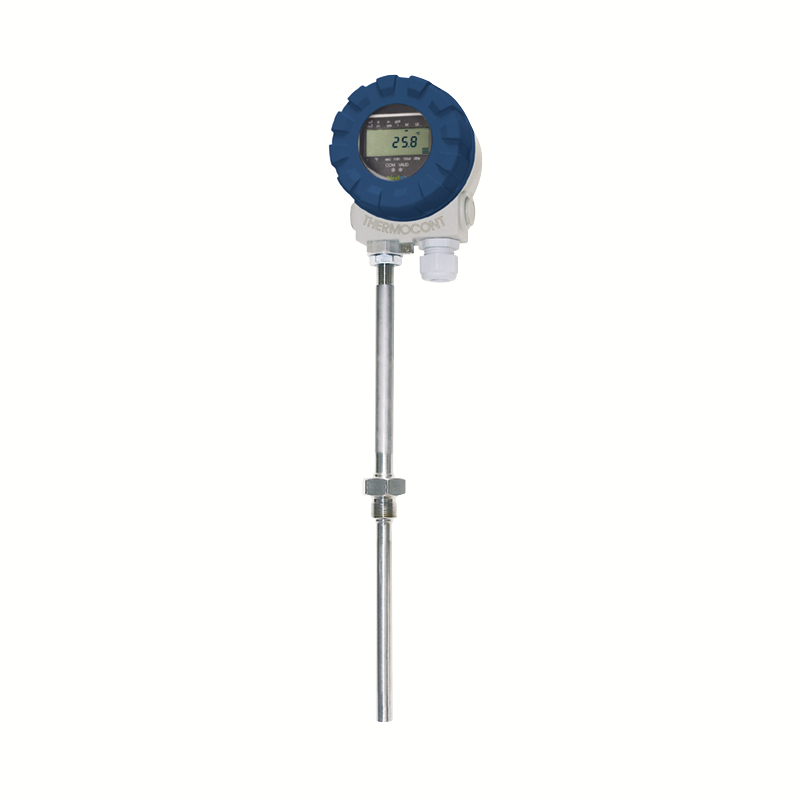

THERMOCONT TT
