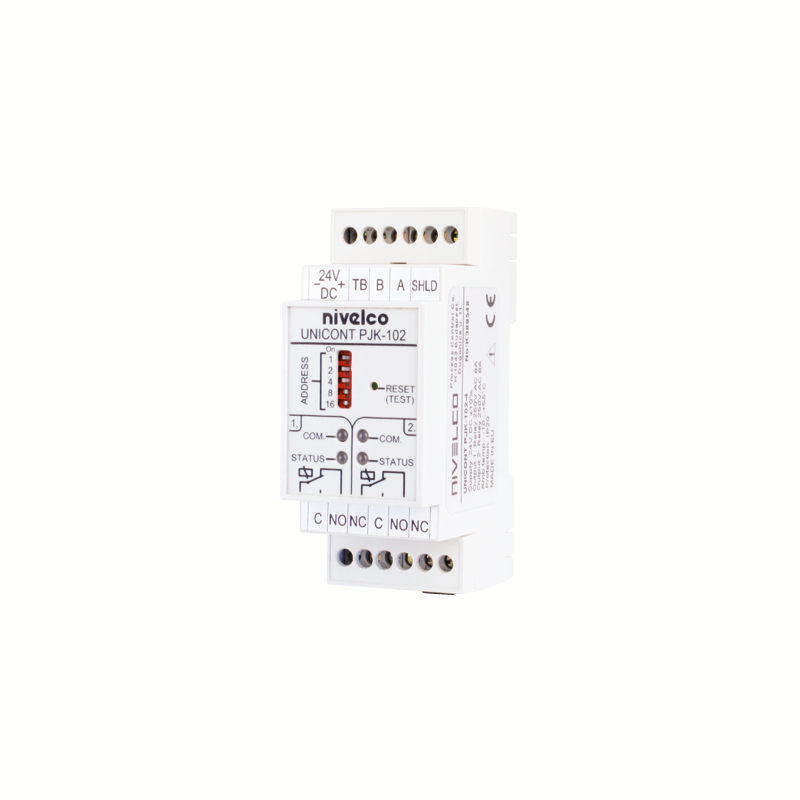

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505951177868-379985b6-5829″][vc_column_text]Universal expander module for:
PLC process control systems
automated systems operating on RS485
MultiCONT process controller
RS485 communication
4-20 mA current outputs
Programmable relay outputs
DIN rail mountable[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505951178506-d99d1666-36d3″][vc_column_text]Expanding a process control system with 2 relays or 2 current outputs
For mixed systems: with 1 relay and 1 current output version
Provides galvanic isolation[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 24 V DC
Ambient temperature: – 10 °C … + 50 °C
Input: RS485 Interface
Output: 2 relay 250 V AC, 8A, AC 1; 2 current outputs (4 – 20 mA); 1 relay + 1 current output
Process connection: DIN rail mounted (module width: 36 mm)
Protection: IP20[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
