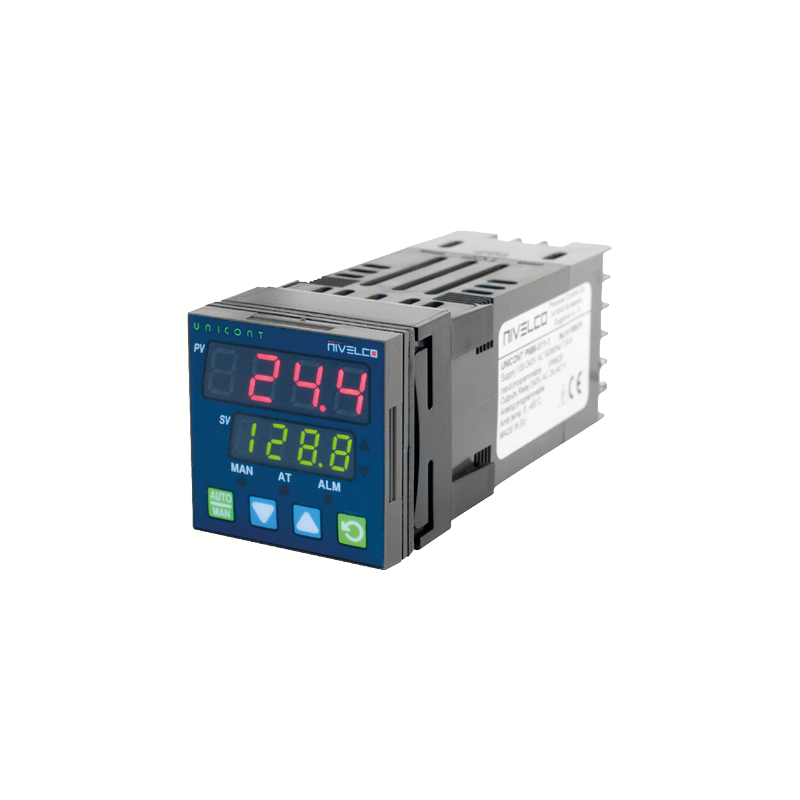

UNICONT PMM-500

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505950646148-663cb333-71c0″][vc_column_text]Universal input 4?20 mA output, relay outputs SSR driver output RS485 communication ON-OFF and PID control Power supply for transmitters Auto tuning (AT) feature 48×48 mm front panel[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505950647055-e89b46f3-12ce”][vc_column_text]Temperature display Switching, control or transmitting tasks Cooling / heating control Alarm indication[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 20 – 48 V AC / […]

Compare

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505950646148-663cb333-71c0″][vc_column_text]Universal input
4?20 mA output, relay outputs
SSR driver output
RS485 communication
ON-OFF and PID control
Power supply for transmitters
Auto tuning (AT) feature
48×48 mm front panel[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505950647055-e89b46f3-12ce”][vc_column_text]Temperature display
Switching, control or transmitting tasks
Cooling / heating control
Alarm indication[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 20 – 48 V AC / 22 – 65 V DC, 100 – 240 V AC
Measuring range: – 240 °C … + 2320 °C
Display: dual 4 digits LED
Input: Pt100, J, T, K, L, N, B, R, S, C, Pt Rh thermocouples
Output: 4 – 20mA, relay, RS485, SSR drivers
Protection: IP20/IP65[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
