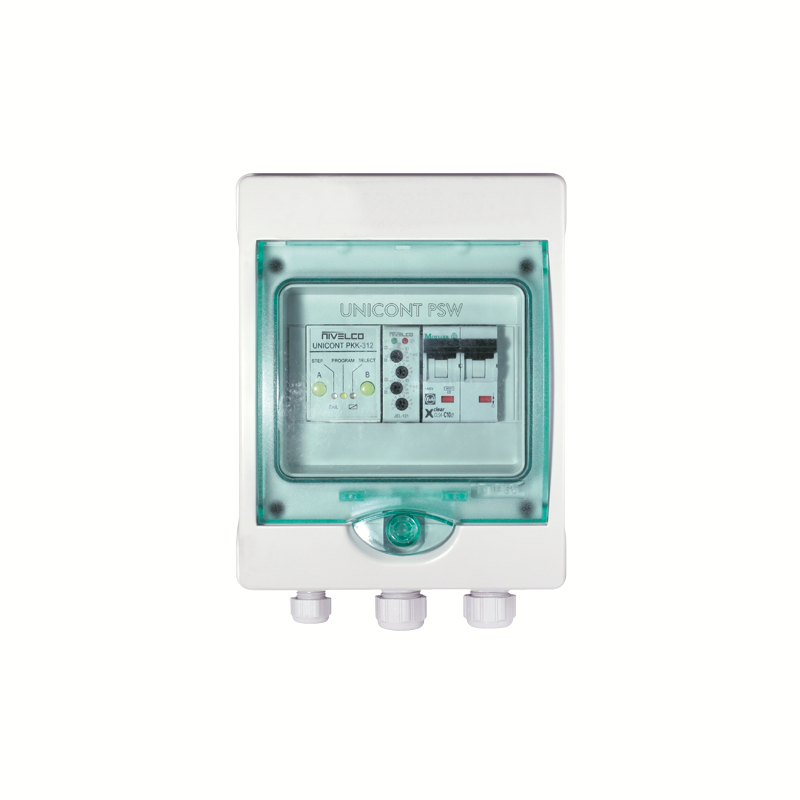

UNICONT PSW

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505951466301-861b61dc-6817″][vc_column_text]Low cost automatic pump control system Ultrasonic level measurement 0.4 ? 3 m measurement range Programmable pump cycling Optional dry-run or overfill protection Maintenance-free Max. 1kW switching rate Motor or cable protection Submersible sensor Incorporated circuit breaker[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505951466957-d2427bc3-8c11″][vc_column_text]Domestic sewage shafts, wetwells Controlling of one-phase pumps (max. 1 kW) Sumps, tanks, flood storages […]

Compare

[vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1505951466301-861b61dc-6817″][vc_column_text]Low cost automatic pump control system
Ultrasonic level measurement
0.4 ? 3 m measurement range
Programmable pump cycling
Optional dry-run or overfill protection
Maintenance-free
Max. 1kW switching rate
Motor or cable protection
Submersible sensor
Incorporated circuit breaker[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1505951466957-d2427bc3-8c11″][vc_column_text]Domestic sewage shafts, wetwells
Controlling of one-phase pumps (max. 1 kW)
Sumps, tanks, flood storages
Drainage sumps, pools[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]Power supply: 230 V AC
Ambient temperature: (Control unit) – 25 °C … + 45 °C
Process temperature: (Ultrasonic transmitter) – 25 °C … + 60 °C
Output: 1 relay NC contact, 250 V AC, 8A, AC 1
Process connection: Control unit: wall mountable; Ultrasonic transmitter: 1″
Protection: Control unit: IP65; Ultrasonic transmitter: IP68[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
