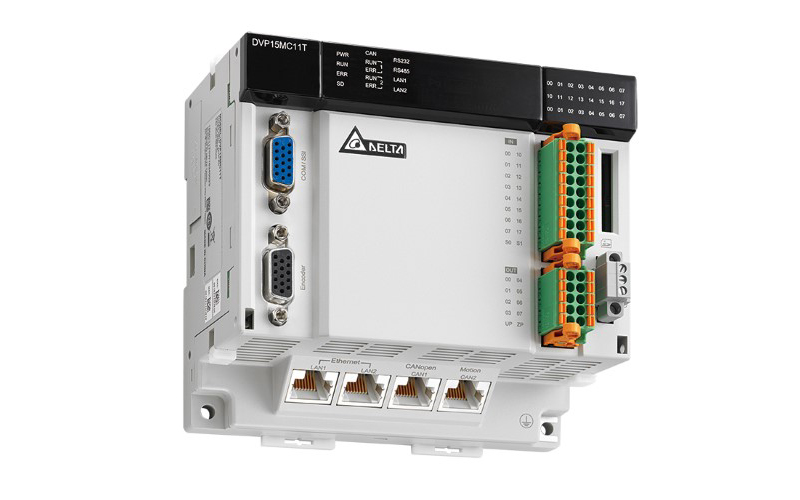

DVP-15MC

Category:

DVP15MC11T is a type of multi-axis motion controller researched and produced by Delta autonomously on basis of CANopen field bus.

Compare

[vc_row][vc_column][vc_column_text]DVP15MC11T is a type of multi-axis motion controller researched and produced by Delta autonomously on basis of CANopen field bus. It complies with CANopen DS301 basic communication protocol and DSP402 motion control protocol. In addition, it also supports standard instruction libraries defined by international organizations for motion control. It brings great convenience to user to learn and develop projects quickly. Maximum 24 axes can be controlled by means of Motion port. The single-axis motion instructions including velocity, position, torque and homing instructions as well as multi-axis instructions such as electronic gear, electronic cam, rotary cut and G code are supported.[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs][vc_tta_section title=”Features” tab_id=”1506252344839-62d52edd-3ba4″][vc_column_text]Up to 24 real axes control (virtual axis no.: 1 ~ 32, can’t be repetitive with real axis no.)
Built-in motion control instructions (supporting Jerk and BufferMode) and easy to use
Supports encoder axis and virtual axis
Single axis motion control instructions: speed, torque, homing, and position setup
Application instructions: electronic gear, E-Cam, and rotary cut
G-code: 8 axes linear / arc / helical interpolation
Coordinates motion control instruction[/vc_column_text][/vc_tta_section][vc_tta_section title=”Applications” tab_id=”1506252321358-0e6e3ff7-9a67″][vc_column_text]High-speed Cutting Machine, Digital Board Cutting Machine, CNC Lathe[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_custom_heading text=”Specifications” font_container=”tag:div|font_size:23|text_align:left|color:%2302026e” use_theme_fonts=”yes”][vc_empty_space height=”20px”][vc_column_text]1 GHZ high-speed floating point operation
High-precision computing: supports LREAL (Double-precision floating -point format )
Synchronization time: 4 axes in 2 ms / 8 axes in 4 ms
Program capacity: 20 MB
Data capacity: 20 MB
1 CANopen port as host or slave station[/vc_column_text][vc_empty_space height=”30px”][/vc_column][/vc_row]
